Noise reduction sheet for household appliance

FOB Reference Price:Get Latest Price
1 Twenty-Foot Container It consults separately (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Dish Washer Parts
Place of Origin:
Japan
Brand Name:
SR damper
Model Number:
SR-1532A-2
Material:
viscoelastic polymer
Thickness:
1,2,3mm
Size:
500x1000
Density:
1650 kg/m3
Flammability:
UL94-V0 (as the SR-1532)
etc:
With single-sided pressure sensitive adhesive
SupplyAbility
SupplyAbility:
50000 Square Meter/Square Meters per Month
Packaging & Delivery
Packaging Details
cardboard or palette
Port
Tokyo
Lead Time :
It is about three weeks from an order to manufacture.

Specifications

Noise reduction sheet
1. It is very effective in the noise of household appliance.
2. With adhesive.
3. RoHs compliant.



Characteristics

◊Noise reduction sheet effectively eliminates noise emanating from resonant structures and surfaces by attaching metal panels.

◊SR-1532A-2 corresponds to RoHS.

◊SVHC46 are not intentionally introduced.

◊This is used for household appliances etc.

◊A lot is used in Japan.

◊It is with adhesive.

◊Flame retardant sheets.

◊ISO9001 ceitified factory.

◊Unvulcanized rubber sheet.



Example of the use of this sheet



Physical properties

Test conditionPhysical propertyTest method
MaterialBitumen based-
ColorBlack-
Specific gravity1.65±0.1JIS-K-6268

(Japanese Industrial Standards)

Hardness(Shore A)80 ±5JIS-K-6253

(Japanese Industrial Standards)

Tensile strength(MPa)>0.8JIS-K-6251

(Japanese Industrial Standards)

(#1dumbbell test piece)

Pull rate :200mm/min

Peel strength of adhesive bonds @90degrees (N/25mm)

>10

or Material destruction

JIS-K-6854

(Japanese Industrial Standards)

Pull rate:20mm/min

Shear strength of adhesive bonds @180degrees (N/25mm)>15

or Material destruction

JIS-K-6854

(Japanese Industrial Standards)

Pull rate:20mm/min

NoncombustibilityEquivalent to UL94V-0(Thickness >1mm)UL94 V-0 (UL standards for safety) as the SR-1532

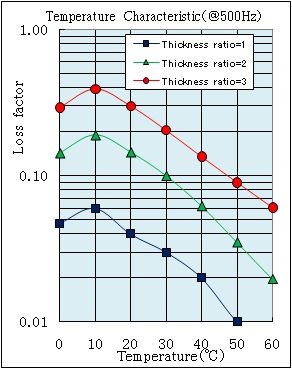

Damping performance

Test method:JIS G 0602 / Method of excitation:Median excitation / Test piece:Oberst beam

Base material:Steel plate(thickness:0.8mm)

Analysis instrument:SignalAnalyser SA-01(RION) / Analysis software:AS-14PA4(RION)



Performance of the environment ( RoHS )

RoHS substanceConc.Minimum limit of measurementTest methodLimitation value (RoHS)
Lead (Pb)Not detected

10

ICP-OES

1000

Cadmium (Cd)Not detected

10

ICP-OES

100

Mercury (Hg)Not detected

10

CV-AAS

1000

Chromium (Cr+6)Not detected

10

Diphenylcarbazide Absorption Spectrometry after extraction

1000

Bromine (Br)Not detected

5

X-ray Fluorescence Spectrometry

1000



Information

◊The following is a link for our products UL Registration Status
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/showpage.html?na.e=QMFZ2.E81042&ccnshorttitle=Plastics+-+Component&objid=1073830335&cfgid=1073741824&version=versionless&parent_id=1073827222&sequence=1

◊Company Website URL

http://www.saitamagomu.co.jp

◊Vibration damping sheet Animation

http://saitamarubber.trustpass.alibaba.com/videoshow.html



Caution

◊Figures in the Detailed Product Description are the results measured during production,
therefore they are not specifications and guaranteed value.It is with adhesive.
